FIne Bubble Aeration

Specification for Treatment of Water and Wastewater.

Models LTC and LWA 1.5

Components:

100 ft. of LDPE 1% Carbon Black Weighted Fine Bubble Aeration Tubing, 304 Stainless Steel Welded Frame, Tube Holders, Hardware and Flotation Marker, HDPE Compression Connectors and Feeder Restraint Sleeve

Product Warranty

Both models come with a 5 Year Warranty and are both built to last decades.

Stainless Steel Disk Module

Nominal Dimensions:

MODEL LTC

 4' diameter by 3" high (1.2m diameter by 8cm high)

Model LWA 1.5

 4' diameter by 3" high (1.2m diameter by 8cm high)

Nominal Weight:

Optimum Air Supply

38 pounds (17 kg)

8.1 SCFM

38 pounds (17kg)

2.7 SCFM

Max Air Pressure

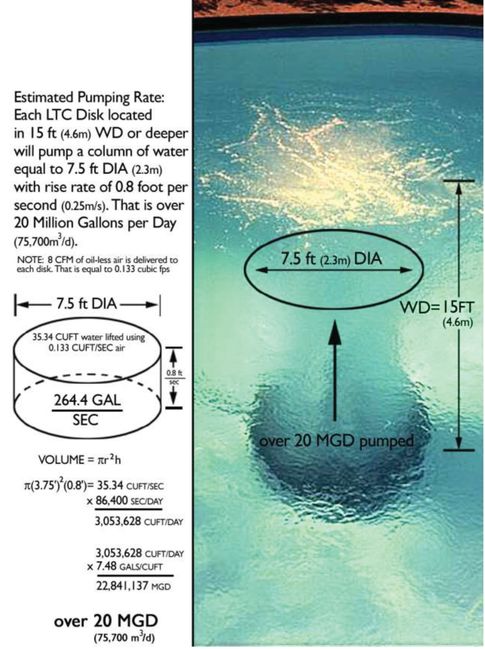

Fluid Turnover Rate @ 15' Water Depth

100 PSI

25.8 MGD

100 PSI

8.6 MGD

Ambient Aeration Specifications for Fine Bubble Aeration for Water and Wastewater Treatment

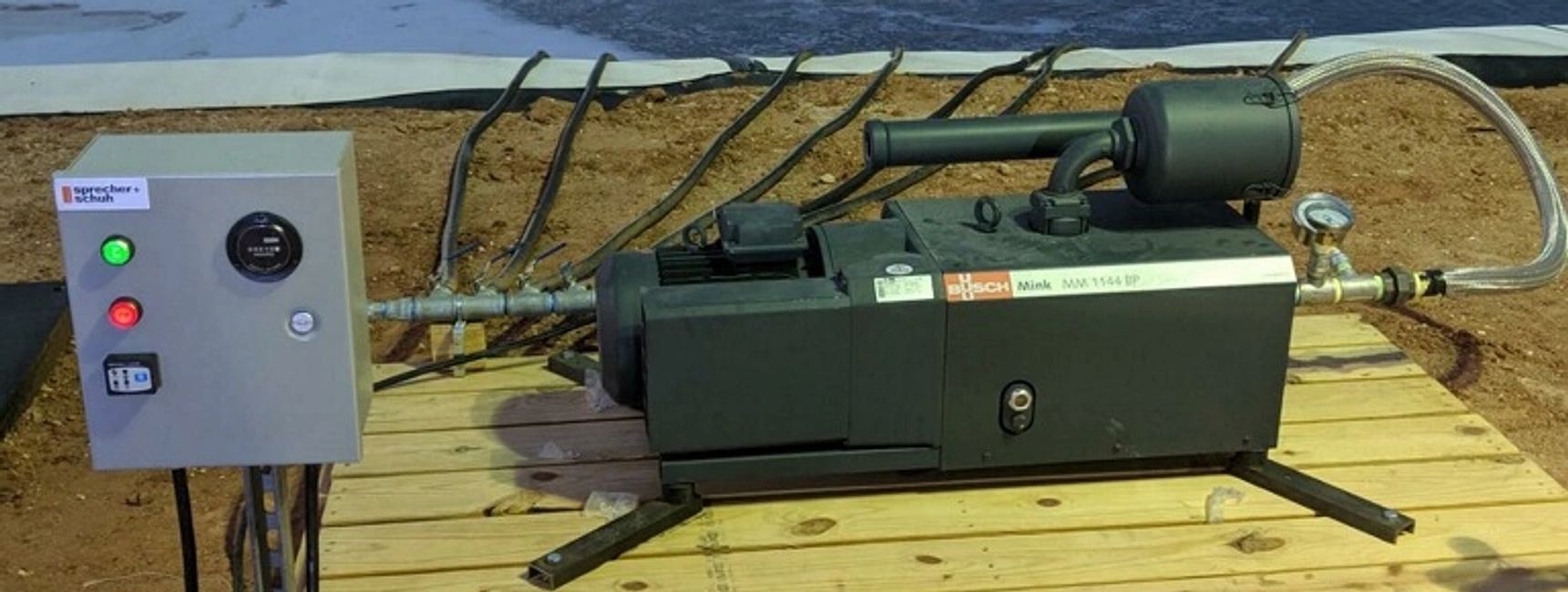

Busch Vacuum Pump System - MINK MM 1402

  • Efficient: energy-efficient, minimized operating costs
  • Nearly Maintenance-Free: dry and contact-free compression
  • Reliable: operationally reliable


Busch Mink claw vacuum technology for industrial vacuum generation offers the highest possible energy efficiency combined with low maintenance and a constant level of performance. The sophisticated design of Busch claw vacuum technology allows Mink claw vacuum pumps to operate at extremely high efficiency levels, which has a positive effect on the pumping speed and energy consumption. In practice this means substantial energy savings for the same pumping speed when compared to conventional vacuum generators.
